Overspray Filter Cardboard Box Filter Standard Size 480*480mm
1. Descriptions:

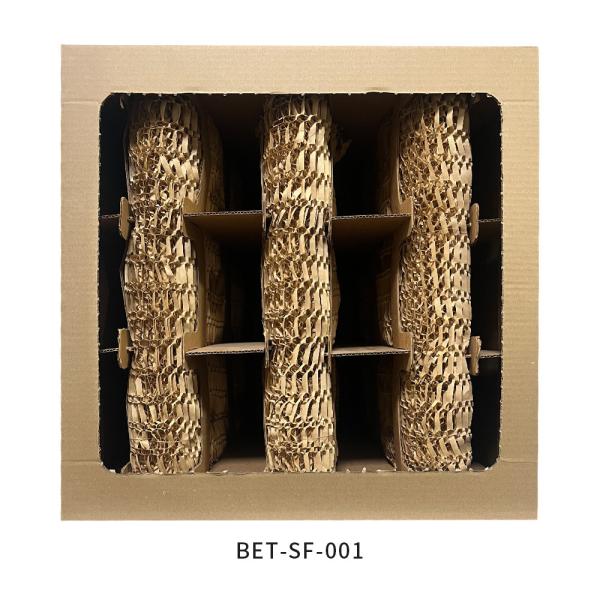

The BET-SF-001 overspray filter cardboard box is a standard product
that can be widely used in automotive vehicle and parts coating
lines. Especially suitable for environmentally friendly waterborne
paint lines.
Advantages of Dry Paint Mist Separation Systems:
In recent years, the research of dry paint booth technology has
been increasingly emphasized by the industry. The
ability of dry paint mist separation system to capture and hold
paint has also been continuously improved. Com
pared with the traditional wet washing technology, the dry paint
mist separation system is being rapidly popular
ized due to the significant advantages of one-phase investment and
operating costs, the main advantages of the
dry paint mist separation system are as follows.
1,Small footprint, saving 30% of the building area
2,Natural gas consumption is reduced by 30%
3,No water circulation system and dregs removal system, low
investment
4,No need to consume water, no waste water generated
5,Simple operation and maintenance, no need for specialized
personnel
6,The amount of solid waste is reduced by 70%
7,Electricity consumption reduced by 10%
2. Specifications:
| Size | 485*485*490mm or customized |
Paint capacity | Max 25 Kg |
Filtration efficiency | ≥98% |
Rated air volume | 1500 m³/h |
Recommended replacement of differential pressure | 800Pa |
Initial wind pressure | <60 Pa |
3. Overspray Filter Cardboard Box Filter has several advantages:
High capacity - excellent filter material properties
Low leakage - optimized and validated 3D structure
Low initial wind resistance - large filtration area
Flame retardant materials - GB8624 and DIN5510-2 certified
Silicone-free - guaranteed coating quality
4. Applications:
• Fresh air system, air purifier, air conditioner
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb
core photocatalyst filter of quality control of parts, processing,
testing, packaging, etc.
The filter material can be adjusted and optimized according to the
customer's production line as well as process and
material characteristics.

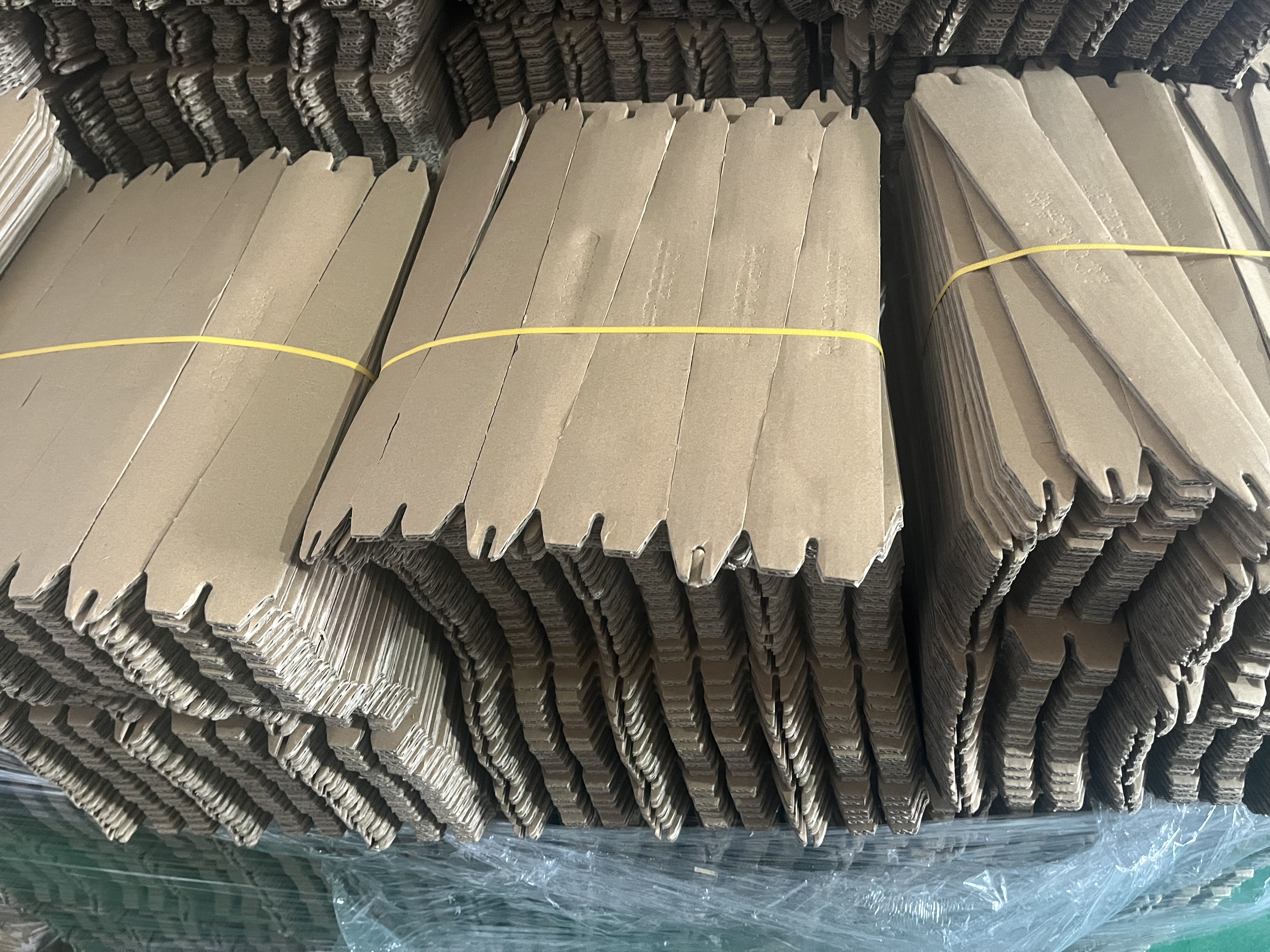

6. Overspray Filter Cardboard Box Filter of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.

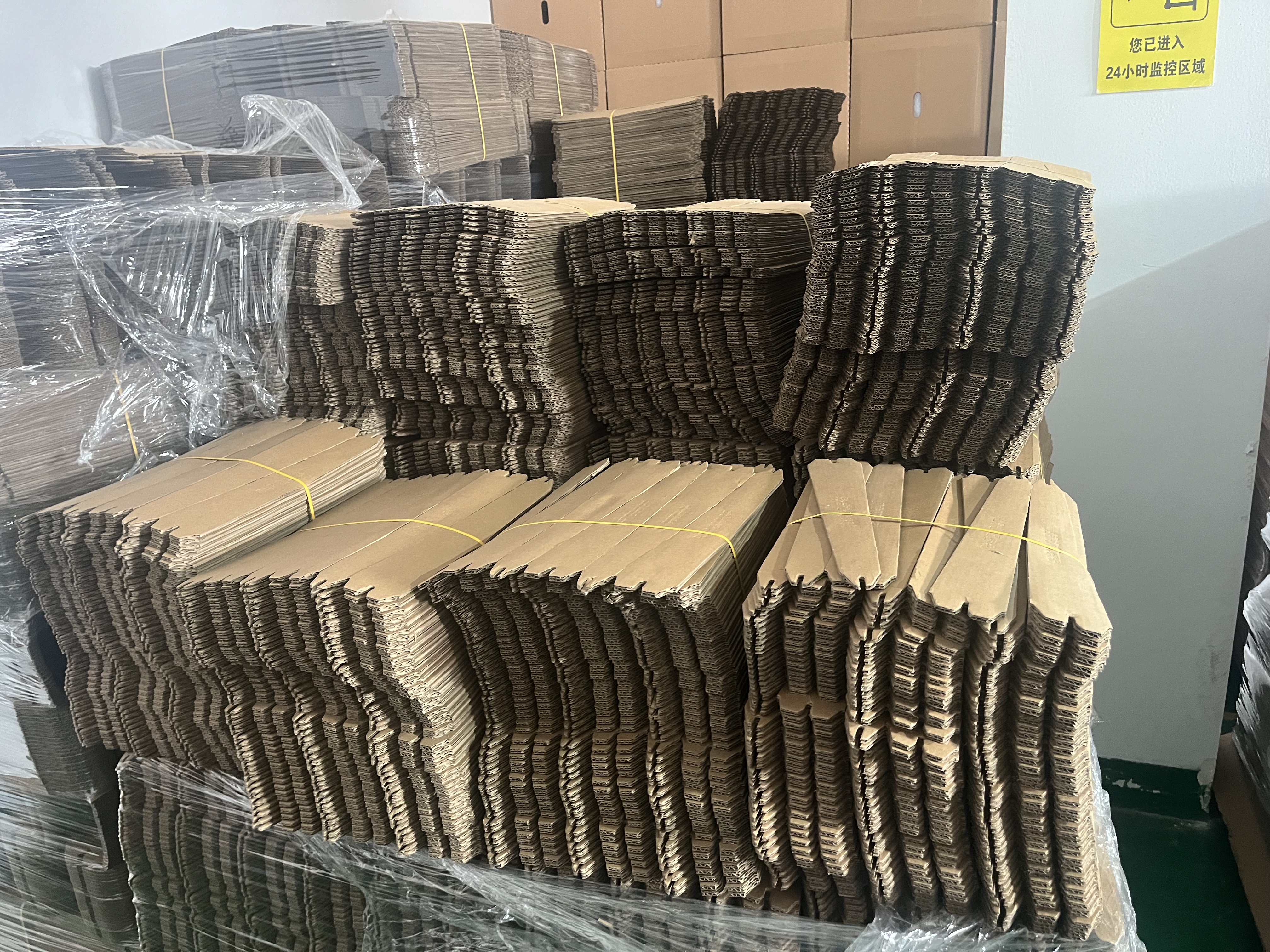

9. Factory show
10. FAQ
Q1. What is Overspray Filter Cardboard Box Filter usd for?
A: It can be widely used in the spray coating production line of
automotive vehicles and components. Especially suitable for
environmentally friendly water-based coating production lines.
Q2. What are the advantages of Overspray Filter Cardboard Box Filter?
A:
High capacity - excellent filter material properties
Low leakage - optimized and validated 3D structure
Low initial wind resistance - large filtration area
Flame retardant materials - GB8624 and DIN5510-2 certified
Silicone-free - guaranteed coating quality
Q3. What is the packaging method of Overspray Filter Cardboard Box Filter?
A: Packed in plywood cases or cartons.
