Product Description:

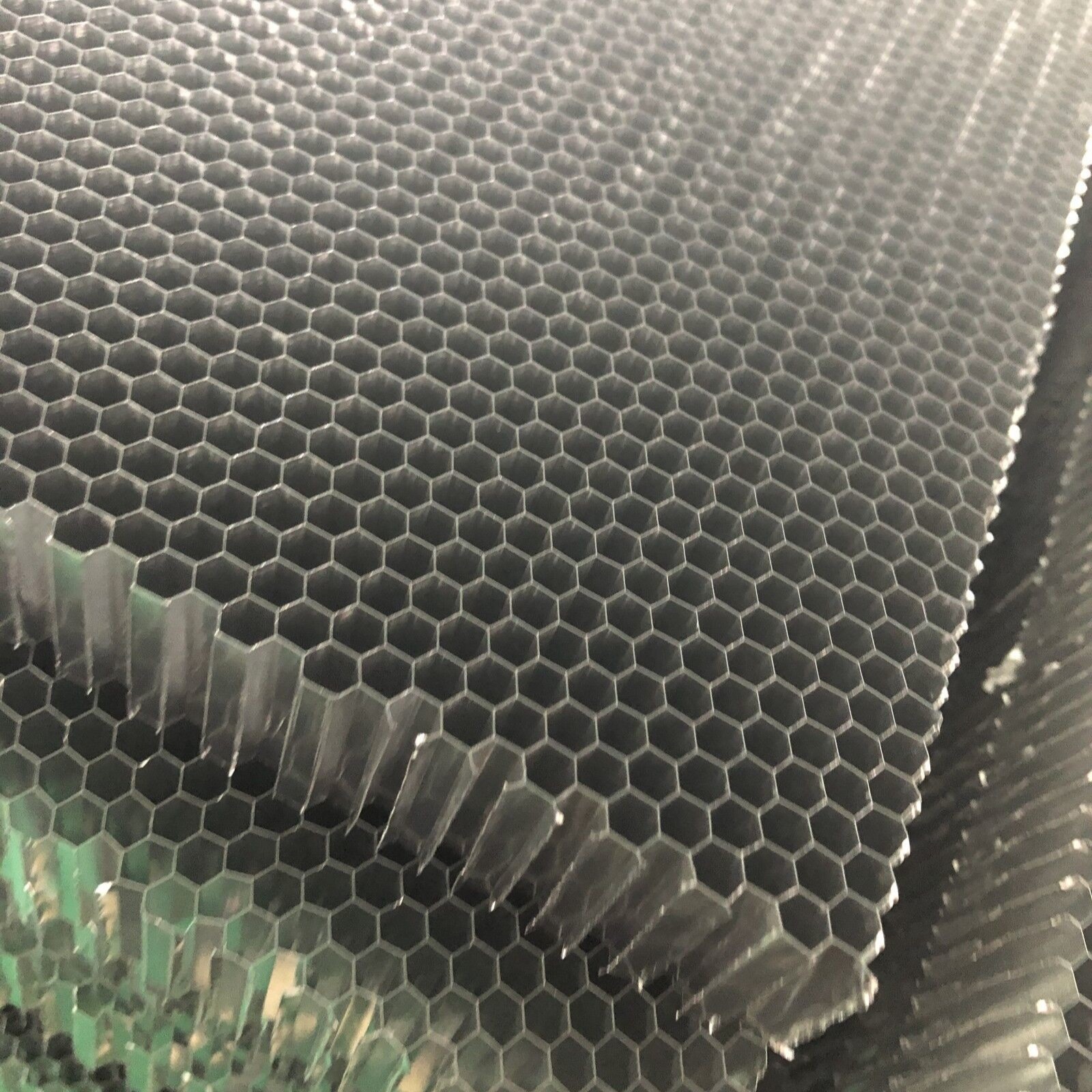

Aluminum Honeycomb Core is a kind of honeycomb materials with
lightweight and high strength. It is made of aluminum alloy and has
a hexagon hole shape with a smooth surface. It has a compressive
strength of ≥0.5MPa and fireproof grade of A1. It is also available
in varying thickness from 2mm to 200mm.
Aluminum Honeycomb Core is widely used in many applications due to
its features of light weight, high strength, and fireproof grade
A1. It is frequently applied in various fields such as aviation,
aerospace, electronics, military, and more.
As a professional manufacturer of Aluminum Honeycomb Core, we are
dedicated to providing customers with products of superior quality,
competitive price, and excellent service.
Features:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Compression, shear and corrosion resistance
• Flatness
Technical Parameters:
| Aluminum Honeycomb Core |
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 |
| BHC3003-0.8-0.03L | 0.03 | 169 |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 |
| BHC3003-1-0.04L | 0.04 | 183 |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 |
| BHC3003-1.5-0.05L | 0.05 | 152 |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 |
| BHC3003-1.83-0.06L | 0.06 | 148 |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 |
| BHC3003-2-0.06L | 0.06 | 135 |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 |
| BHC3003-2.5-0.06L | 0.06 | 110 |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 |
| BHC3003-3-0.06L | 0.06 | 91 |
| BHC3003-3-0.08L | 0.08 | 122 |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 |
| BHC3003-3.5-0.06L | 0.06 | 82 |
| BHC3003-3.5-0.08L | 0.08 | 110 |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 |
| BHC3003-4-0.06L | 0.06 | 68 |
| BHC3003-4-0.08L | 0.08 | 92 |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 |
| BHC3003-5-0.08L | 0.08 | 72 |
| BHC3003-5-0.1L | 0.1 | 91 |
| Alloy | Al3003 and Al5052 |
| Supply form | Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
Applications:
Aluminum Honeycomb Core by BEECORE China
BEECORE's Aluminum Honeycomb Core is a light weight, hexagon hole
honeycomb core. It is made of 3003 and 5052 aluminum, with a smooth
surface. Its compressive strength is ≥0.5MPa, and its thickness can
range from 2mm to 200mm.
Aluminum Honeycomb Core is widely used in various industries, such
as aerospace, automotive, rail transit, clean energy, and
construction. The core is often used as structural panels,
partitions, ceilings, and walls in aircrafts, ships, trains, and
other vehicles. It is also used as a core material for building
facades, walls, doors, windows, and other components.
Aluminum Honeycomb Core is also used in the energy field. Its light
weight and high strength make it an ideal choice for solar panels
and wind turbines. It is also used in the clean energy sector, such
as for hydrogen fuel cells.
Aluminum Honeycomb Core has been extensively tested and certified
to meet the highest standards for safety and quality. With its
superior performance and durability, it can be used in a variety of
demanding applications.
Customization:
Aluminum Honeycomb Core is a kind of honeycomb materials, which is
made of aluminum alloy and honeycomb core. It has excellent
properties of high compressive strength, bending strength, tensile
strength and fireproof grade. The size of aluminum honeycomb core
can be customized according to the customer's requirements.
Support and Services:
Aluminum Honeycomb Core Technical Support and Service
We provide technical support and service for Aluminum Honeycomb
Core products. Our team of engineers and technicians are available
to answer your questions and provide advice on the best solutions
for your business. We offer technical advice, product testing, and
troubleshooting to ensure that your Aluminum Honeycomb Core
products are working correctly and efficiently. We also provide
maintenance and repair services for Aluminum Honeycomb Core
products.
If you have any questions or need further assistance, please
contact us and we will be happy to help.
Packing and Shipping:
Aluminum Honeycomb Core should be packaged and shipped with care to
ensure it is not damaged during transit. At a minimum, the
following steps should be taken:
- Pack Aluminum Honeycomb Core in heavy-duty, weather-proof wood
boxes.
- Be sure to cushion the core with packing material (such as bubble
wrap) to prevent shifting during transit.
- Ensure that the boxes are properly labeled with the contents and
destination.
- Ship the box using a reliable carrier and delivery service.
- Request a delivery confirmation and signature to ensure safe
delivery.
FAQ:
Q1: What is Aluminum Honeycomb Core?
A1: Aluminum Honeycomb Core is a kind of lightweight, rigid and
strong material made of aluminum sheets and honeycomb structure
core. It is made by BEECORE, a brand from China.
Q2: What is the size of Aluminum Honeycomb Core?
A2: Aluminum Honeycomb Core can be customized according to
customer's request.
Q3: What is the material of Aluminum Honeycomb Core?
A3: 3003 and 5052 aluminum foil
Q4: What are the features of Aluminum Honeycomb Core?
A4: Aluminum Honeycomb Core has high strength, good energy
absorption, low density and excellent corrosion resistance. It also
has the characteristics of light weight, stable structure, high
temperature resistance, good insulation and sound absorption.
