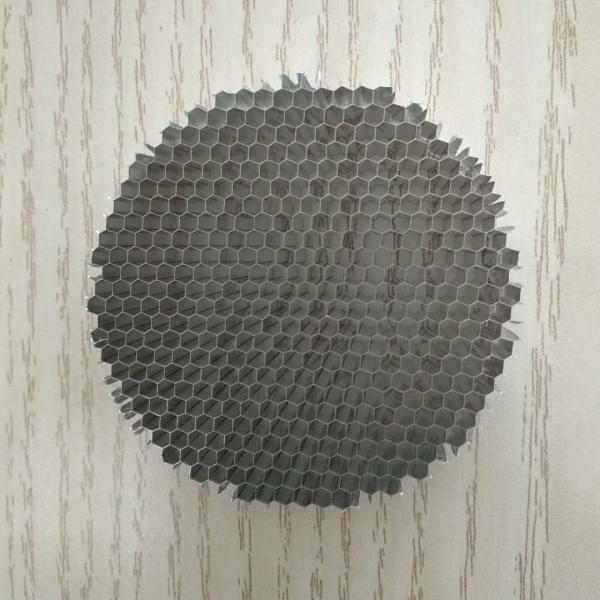

Circular Aluminum Honeycomb Louver Is Used For Oxygen Generator
Equipment
1. Descriptions:
Aluminum honeycomb louver is made of microporous aluminum honeycomb
core through gluing, hot pressing, sawing and stretching. The side
length of honeycomb core is generally less than 3mm. This product
can be used for oxygen generator equipment, it have good
ventilation.
It adopts microporous aluminum honeycomb core and is sprayed with
black or other colors. Various frameworks can be added according to
customer needs. Aluminum honeycomb louvers are also generally
applicable to intelligent traffic flash lamps, led fill lamps, film
and television lamps, photography accessories and other products.
2. Specifications:
| Aluminum honeycomb lovuer |
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 |
| BHC3003-0.8-0.03L | 0.03 | 169 |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 |
| BHC3003-1-0.04L | 0.04 | 183 |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 |
| BHC3003-1.5-0.05L | 0.05 | 152 |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 |
| BHC3003-1.83-0.06L | 0.06 | 148 |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 |
| BHC3003-2-0.06L | 0.06 | 135 |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 |
| BHC3003-2.5-0.06L | 0.06 | 110 |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 |
| BHC3003-3-0.06L | 0.06 | 91 |
| BHC3003-3-0.08L | 0.08 | 122 |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 |
| BHC3003-3.5-0.06L | 0.06 | 82 |
| BHC3003-3.5-0.08L | 0.08 | 110 |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 |
| BHC3003-4-0.06L | 0.06 | 68 |
| BHC3003-4-0.08L | 0.08 | 92 |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 |
| BHC3003-5-0.08L | 0.08 | 72 |
| BHC3003-5-0.1L | 0.1 | 91 |
| Shape | Round, square |
| Clour | Black |
| Alloy | Al3003 and Al5052 |
| Supply form | Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
3. Aluminum honeycomb louver has several advantages:
• Anti glare
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
4. Applications:
• Pxygen generator equipments, Lighting industry, Film shooting,
Traffic lights, Industry, Printing machine platform and so on.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb
louver of quality control of parts, processing, testing, packaging,
etc.

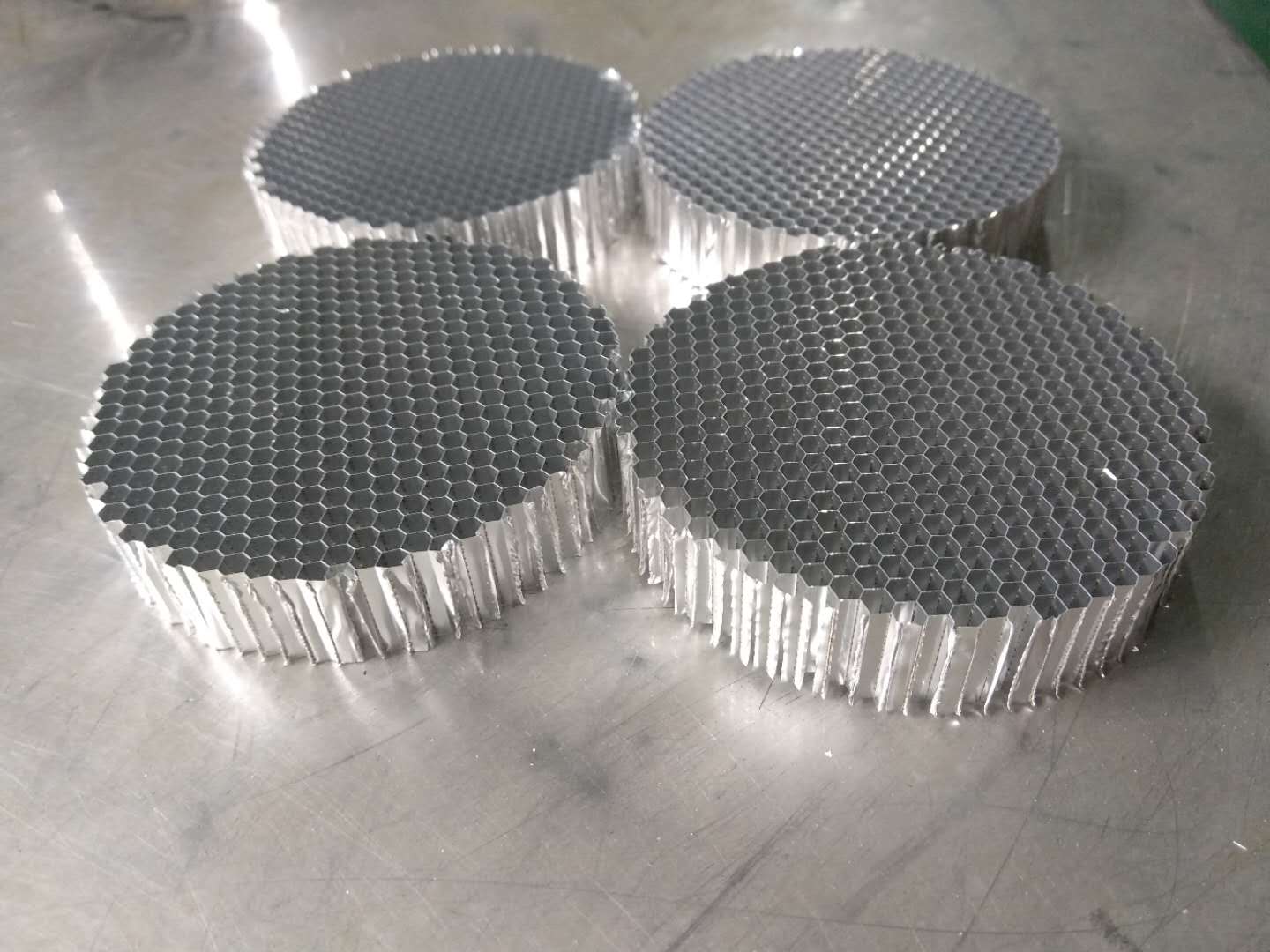

6. Aluminum honeycomb louver of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the
finished product which was using honeycomb panel as the solution,
such as truck body, laser TV / projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is aluminum honeycomb louver usd for?
A: Aluminum honeycomb louver which has excellent rigidity and is
one of the best lighting materials. It has been widely used in the
decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb louver?
A: Aluminum honeycomb louver has the advantages of light
weight-high strength, high surface flatness, environmental
protection and no pollution. When used in lamps, it is conducive to
anti glare and make the light more uniform and soft.
Q3. What is the packaging method of aluminum honeycomb louver?
A: Aluminum honeycomb louver of samples are packed in cardboard and bulk orders are packed in
plywood cases.
