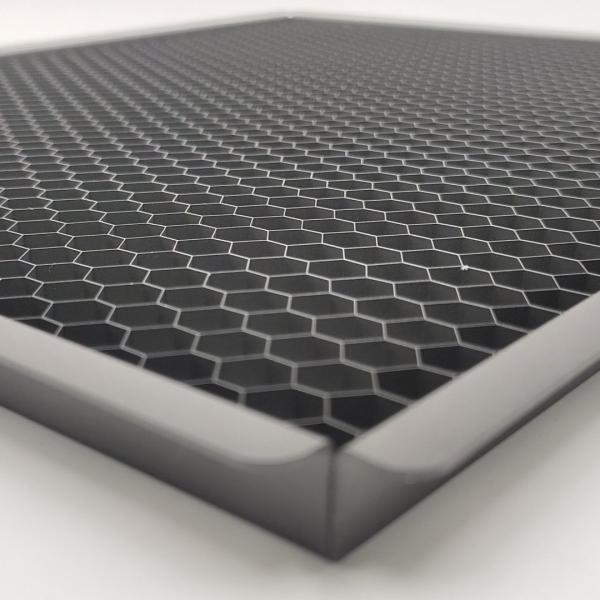

Microporous Aluminum Honeycomb Core Grid Louver Anti-Glare Diameter
110mm
1. Descriptions:
Aluminum honeycomb grid has hexagonal honeycomb core grid, which
has the advantages of good mechanical properties and flat surface.
It is mainly used for all kinds of intelligent traffic lights, led
filling lights, film and television lights and photography
accessories, which is conducive to anti glare and soft lighting,
and make the beam more uniform.
2. Specifications:
| Aluminum honeycomb grid (lovuer) |
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 |
| BHC3003-0.8-0.03L | 0.03 | 169 |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 |
| BHC3003-1-0.04L | 0.04 | 183 |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 |
| BHC3003-1.5-0.05L | 0.05 | 152 |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 |
| BHC3003-1.83-0.06L | 0.06 | 148 |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 |
| BHC3003-2-0.06L | 0.06 | 135 |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 |
| BHC3003-2.5-0.06L | 0.06 | 110 |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 |
| BHC3003-3-0.06L | 0.06 | 91 |
| BHC3003-3-0.08L | 0.08 | 122 |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 |
| BHC3003-3.5-0.06L | 0.06 | 82 |
| BHC3003-3.5-0.08L | 0.08 | 110 |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 |
| BHC3003-4-0.06L | 0.06 | 68 |
| BHC3003-4-0.08L | 0.08 | 92 |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 |
| BHC3003-5-0.08L | 0.08 | 72 |
| BHC3003-5-0.1L | 0.1 | 91 |
| Shape | Round, square |
| Clour | Black |
| Alloy | Al3003 and Al5052 |
| Supply form | Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
3. Aluminum honeycomb grid (louver) has several advantages:
• Anti glare
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
4. Applications:
• Pxygen generator equipments, Lighting industry, Film shooting,
Traffic lights, Industry, Printing machine platform and so on.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb
grid (louver) of quality control of parts, processing, testing,
packaging, etc.

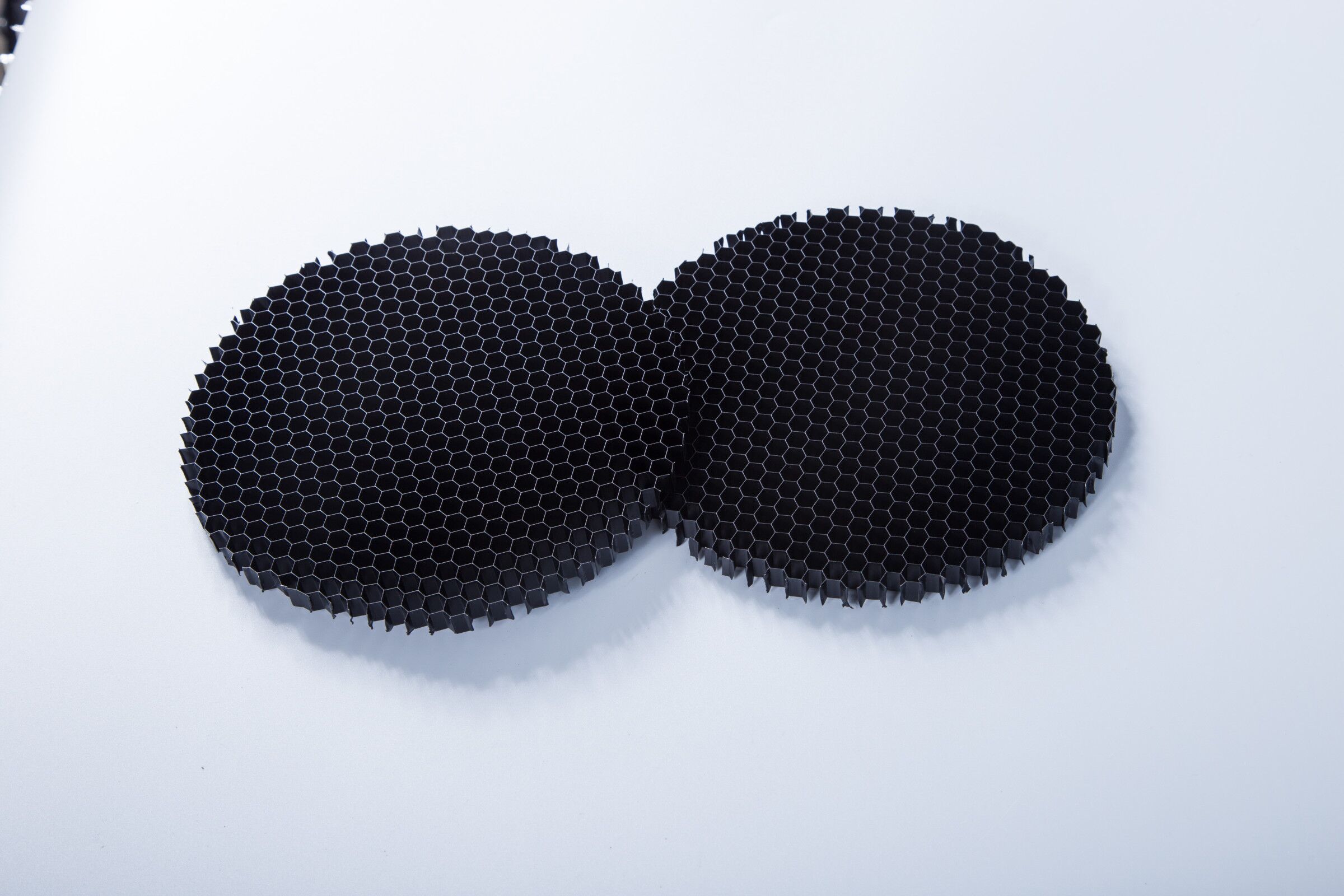

6. Aluminum honeycomb grid (louver) of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the
finished product which was using honeycomb panel as the solution,
such as truck body, laser TV / projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is aluminum honeycomb grid usd for?
A: Aluminum honeycomb grid which has excellent rigidity and is one
of the best lighting materials. It has been widely used in the
decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb grid?
A: Aluminum honeycomb grid has the advantages of light weight-high
strength, high surface flatness, environmental protection and no
pollution. When used in lamps, it is conducive to anti glare and
make the light more uniform and soft.
Q3. What is the packaging method of aluminum honeycomb grid?
A: Aluminum honeycomb grid of samples are packed in cardboard and bulk orders are packed in
plywood cases.
