Low Cost Glass Fiber Honeycomb Core Composite Board For Deck Of
Yacht
1. Descriptions:

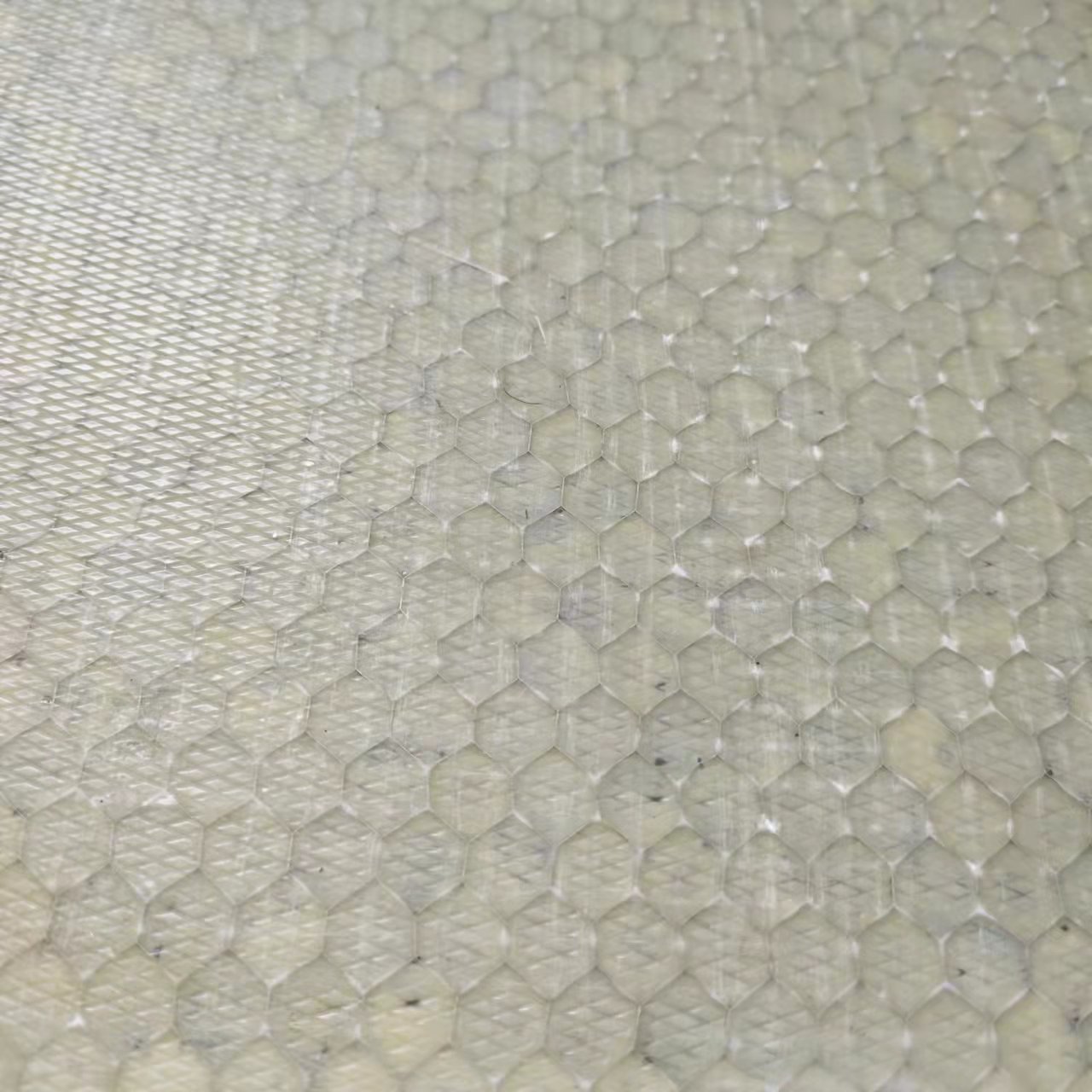

Glass fiber honeycomb panel (FRP honeycomb panel) consists of two
glass fiber (FRP) panels as the top skin and bottom skin, which are
laminated to the aluminum honeycomb core with two-component PU glue
or epoxy glue. Glass fiber (FRP) is light weight, high strength,
low cost and anti-aging. It is a new environment-friendly material.
2. Specifications:
| Carbon fiber honeycomb panel |
| FRP | Skins of High Pressure Laminate |
| Thickness: from 1.0 mm to 2 mm |
| - Other thickness on request |
| - Black color or customizable |
| HONEYCOMB CORE | 3003 Aluminum Honeycomb Core |
| Diameter (hexagonal cells): Ø 6, Ø 10 |
| Foil Thickness: from 40 to 80 microns |
| FRP | Skins of High Pressure Laminate |
| Thickness: from 1.0 mm to 2 mm |
| - Other thickness on request |
| - Black color or customizable |
| Total Panel thickness | Regular: 5mm, 8mm, 10mm, 20mm |
| -Other thickness on request |
| Dimension | Regular: 1220*2440mm |
| -Other dimension on request |
| Specific specification of honeycomb core |
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
| Supply form | Unexpanded(block, strip) or expanded(slice); |
| Technical Data Sheet |
Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. FRP honeycomb panel has several advantages:
• Super light and high strength, anti-fatigue
• Excellent environment adaptability and electric insulating
• Outstanding corrosion resistance and flame resistance
• Good compression and impact resistance
• Sound and heat insulation
4. Applications:
• Truck body, yacht deck, Partition, stone reinforcement, medical, automotive, industrial, sports, Kitchen countertop etc.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for FRP honeycomb panel of
quality control of parts, processing, testing, packaging, etc.
6. FRP honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is FRP honeycomb panel usd for?
A: The FRP honeycomb panel is used for industrial, truck, kitchen countertop.
Q2. What are the advantages of FRP honeycomb panel?
A: FRP honeycomb panel has the advantages of light weight-high
strength, high surface flatness, environmental protection and no
pollution.
Q3. What is the packaging method of FRP honeycomb panel?
A: FRP honeycomb panel of samples are packed in cardboard and bulk
orders are packed in plywood cases.
