Stone Aluminum Honeycomb Plate Is Used For High-Grade Kitchen And
Bathroom
1. Descriptions:

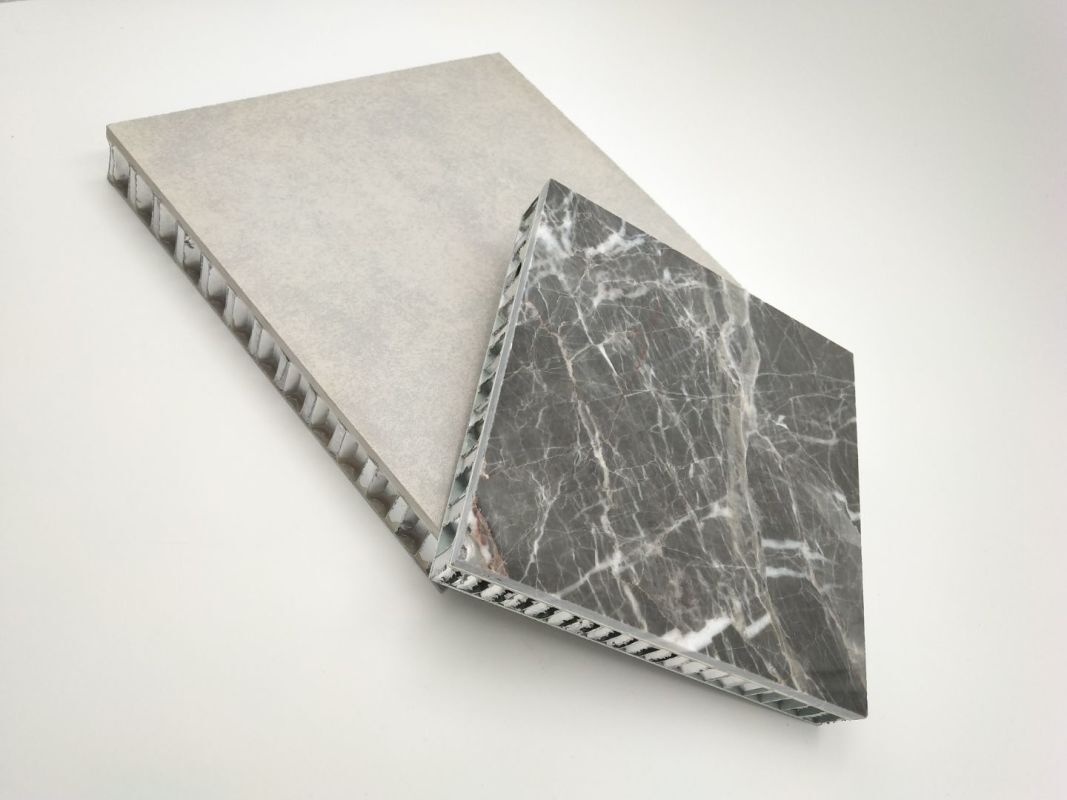

The structure of stone honeycomb plate is that the surface is
compounded with marble or granite, and then a layer of aluminum
plate is compounded, and the middle is filled with aluminum
honeycomb core. The composite stone honeycomb plate makes it a
light stone, and the weight is only 1:5 of ordinary stone, which
greatly improves the added value of stone. The use of ultra-thin
honeycomb stone further improves the decorative function of stone,
The application range of stone is widened. It can be widely used in
building walls, floors, bars, counters, indoor partitions,
ceilings, bathrooms, toilets and other parts.
2. Specifications:
| Stone aluminum honeycomb panel |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Stone type | Granite, marble |
| Aluminum panel thcikness | 0.8, 1.0, 1.5mm |
| Stone thickness | 3-5mm |
| Color | Customized |
| Applications | Building curtain wall system, building interior decoration,
elevator car body, furniture supporting, bathroom integrated
installation system |
| Specification of honeycomb core |
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or
perforated; Slotted or unslotted |
| Technical Data Sheet |
Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. Stone aluminum honeycomb panel has several advantages:
• Light weight and improved strength
• Improvement of anti pollution ability
• Easier to control color difference
• Easy installation
• Sound insulation, moisture-proof and cost reduction.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is
important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and
balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
• Pailway, ship flooring panel
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for stone aluminum
honeycomb panel of quality control of parts, processing, testing,
packaging, etc.
6. Stone aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is stone aluminum honeycomb panel usd for?
A: Stone aluminum honeycomb panel has been widely used in the
Building curtain wall system, building interior decoration,
elevator car body, furniture supporting, bathroom integrated
installation system
Q2. What are the advantages of stone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel has the advantages of light
weight-high strength, environmental protection and no pollution,
excellent surface flatness and smoothness, superior weather,
corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of atone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel of samples are packed in
cardboard and bulk orders are packed in plywood cases.
