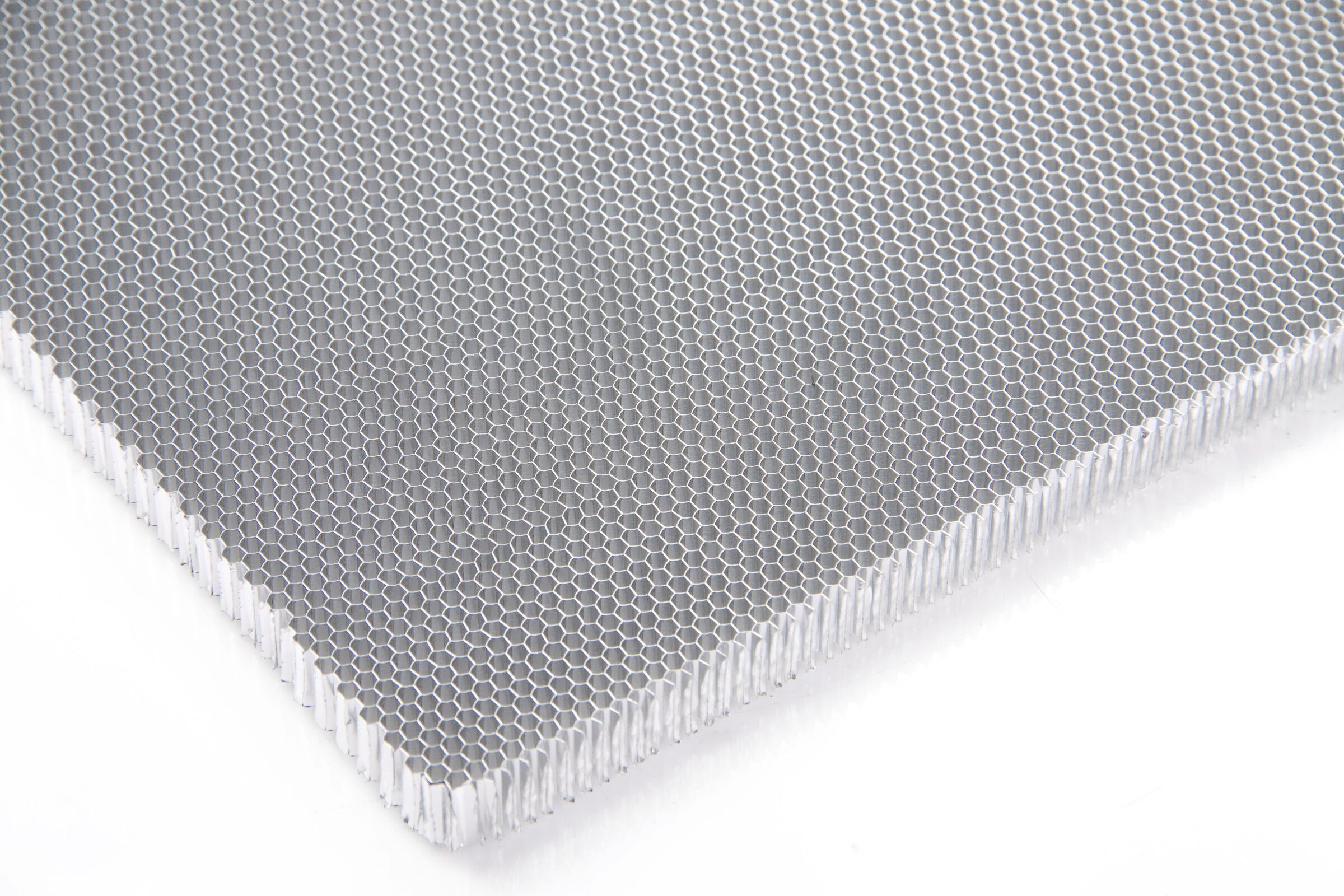

5052 Aluminum Honeycomb Core For Aerospace Construction And Railway
1. Descriptions:
Compared with 3003 aluminum honeycomb core, the material of 5052
aluminum honeycomb core is harder. The aluminum honeycomb core is
bonded by multi-layer aluminum foil, laminated, and then stretched
to form a regular honeycomb shape.
Aluminum honeycomb has very excellent properties. It has high
strength, high temperature resistance and corrosion resistance. It
is an ideal material for aviation, aerospace, high-speed ships,
high-speed trains and other industries.
2. Specifications:
| Micro-Porous Aluminum Honeycomb Core |
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 |
| BHC3003-0.8-0.03L | 0.03 | 169 |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 |
| BHC3003-1-0.04L | 0.04 | 183 |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 |
| BHC3003-1.5-0.05L | 0.05 | 152 |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 |
| BHC3003-1.83-0.06L | 0.06 | 148 |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 |
| BHC3003-2-0.06L | 0.06 | 135 |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 |
| BHC3003-2.5-0.06L | 0.06 | 110 |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 |
| BHC3003-3-0.06L | 0.06 | 91 |
| BHC3003-3-0.08L | 0.08 | 122 |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 |
| BHC3003-3.5-0.06L | 0.06 | 82 |
| BHC3003-3.5-0.08L | 0.08 | 110 |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 |
| BHC3003-4-0.06L | 0.06 | 68 |
| BHC3003-4-0.08L | 0.08 | 92 |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 |
| BHC3003-5-0.08L | 0.08 | 72 |
| BHC3003-5-0.1L | 0.1 | 91 |
| Alloy | Al3003 and Al5052 |
| Supply form | Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
3. Micro- Porous aluminium core has several advantages:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Flatness
4. Applications:
• Building materials industry
• Lighting industry
• Industry
• Printing machine platform and so on
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for micro-porous aluminum
honeycomb core of quality control of parts, processing, testing,
packaging, etc.
6. Micro-porous aluminum honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is micro-porous aluminum honeycomb core usd for?
A: The micro-porous aluminum honeycomb core which has excellent
rigidity and is one of the best metal wall materials. It has been
widely used in the decoration of modern architecture, trains,
automobiles, shipbuilding and building materials industry, lighting
industry, printing machine platform and so on.
Q2. What are the advantages of micro-porous aluminum honeycomb
core?
A: Micro-porous aluminum honeycomb core has the advantages of light
weight-high strength, high surface flatness, environmental
protection and no pollution.
Q3. What is the packaging method of micro-porous aluminum honeycomb
core?
A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in
plywood cases.
