Aluminum Corrugated Core Equipment High Quality
Continuous Expanding Machine Honeycomb Equipment
1. Descriptions:
BEECORE aluminum corrugated core is a kind of aluminum strip as the
base material, through rolling into corrugated core material,
generally using 1 series of aluminum, height within 15mm, it is
widely used in metal top wall panel, functional panel core
material. BEECORE aluminum
corrugated core composite forming metal plate, in addition to the
characteristics of lightweight and high strength honeycomb
composite board,
longitudinal direction has better flatness, more convenient for
large-scale production.
2. Specifications:
| Aluminum Corrugated Core Equipment |
| Description | Unit | |
| Width | mm | 1250/1500 |
| Product thickness | mm | 4, 6, 8, 10, 12, 15 |
| Material thickness | mm | 0.15-0.3 |
| Roll unwinding height | mm | 2 |
| Material load | kg | 5000 |
| Inner diameter of the roll | mm | 470-530 |
| External diameter of the roll | mm | 1500 |
| Material feed rate | m/min | 15 |
| Material supply ower | kW | 7.5+1.1 |
| Gear transmission | / | T-type and U-type |
| Voltage | V | 380 |
3. Equipment has several advantages:
• Increase the utilization rate of core material
• Decrease idle run of expanding drums
• High efficiency
• Increase production efficiency
• Decrease employee costs

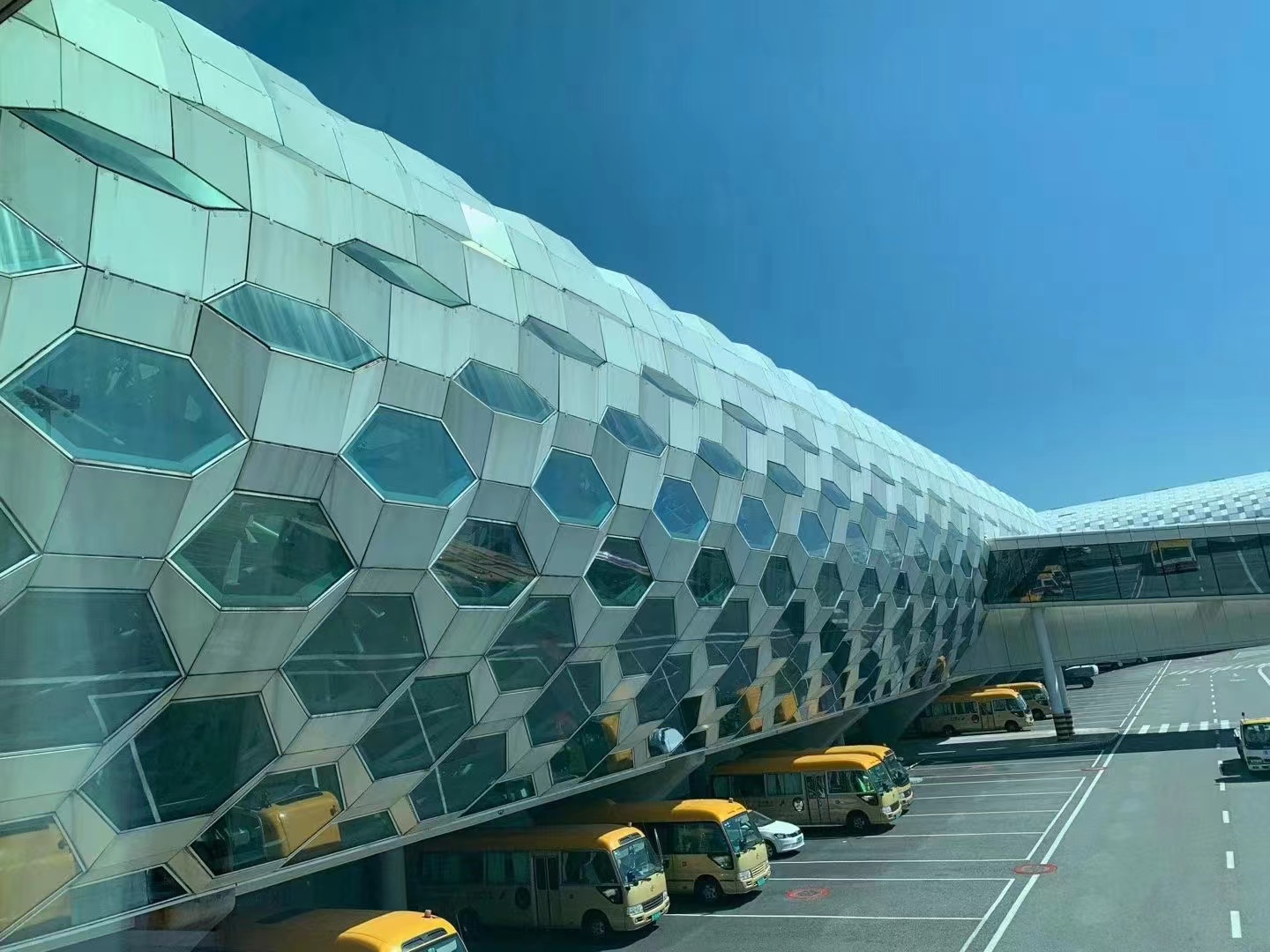

4. Applications:
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for gluing machine
honeycomb equipment of quality control of parts, processing,
testing, packaging, etc.

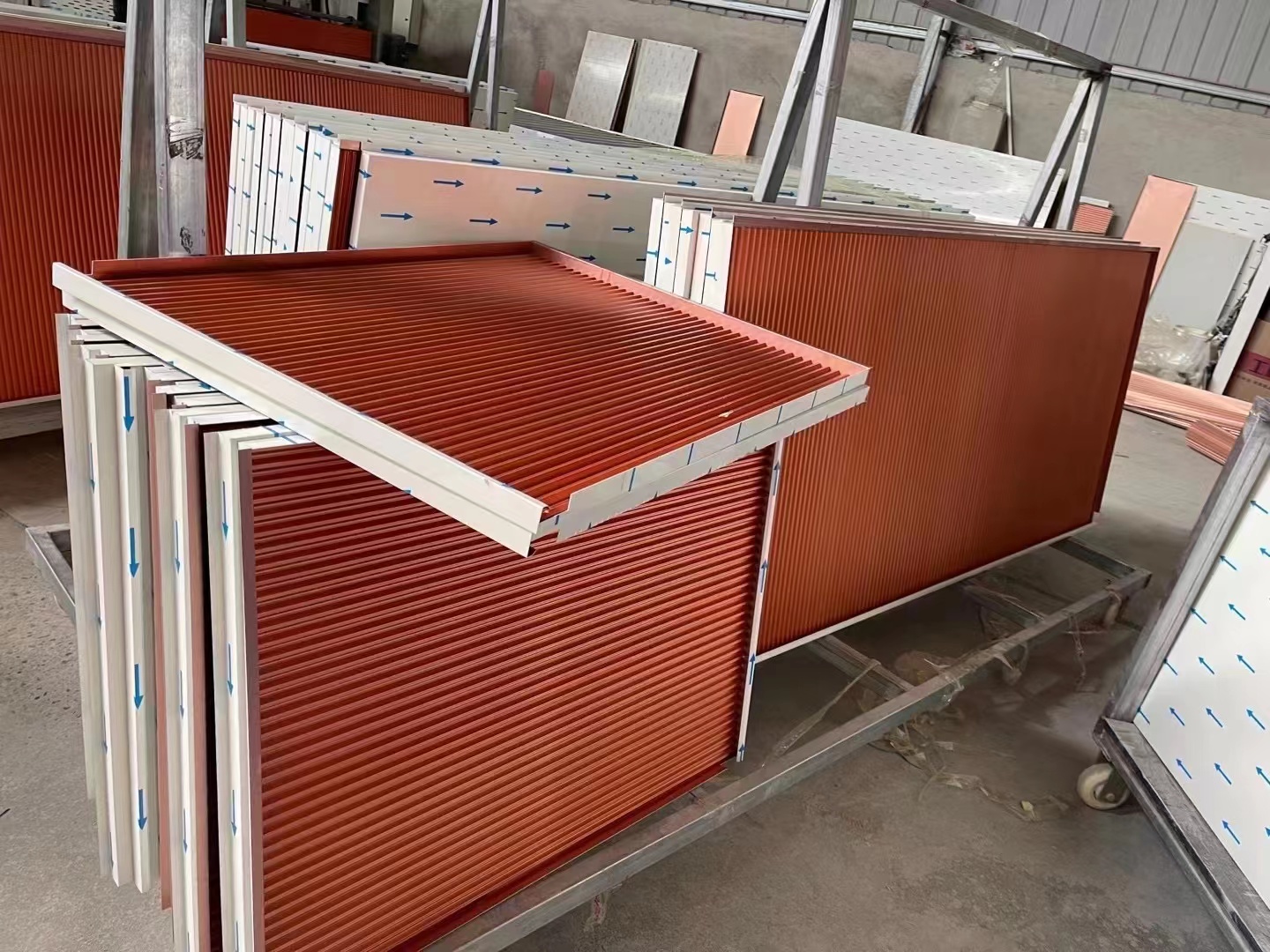

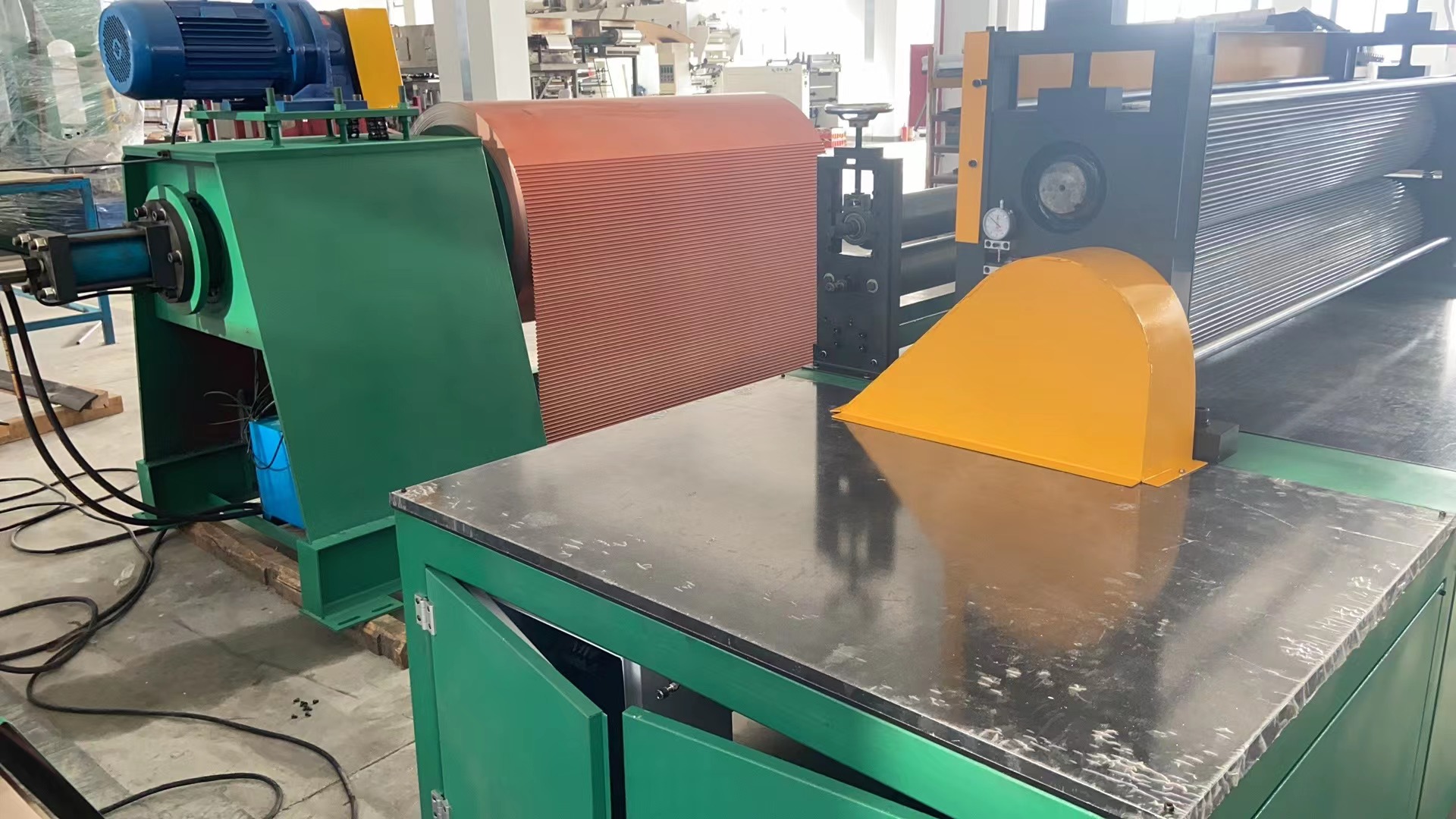

6. Aluminum Corrugated Core Equipment of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to
research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou)
company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum
honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and
mainly produce aluminum honeycomb core and paper honeycomb core and
other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine
furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in
super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported
to Europe, America, Asia and already obtained the technology patent
in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the
high-technology innovation enterprise.
9. Factory picture
10. Exhibition Show
