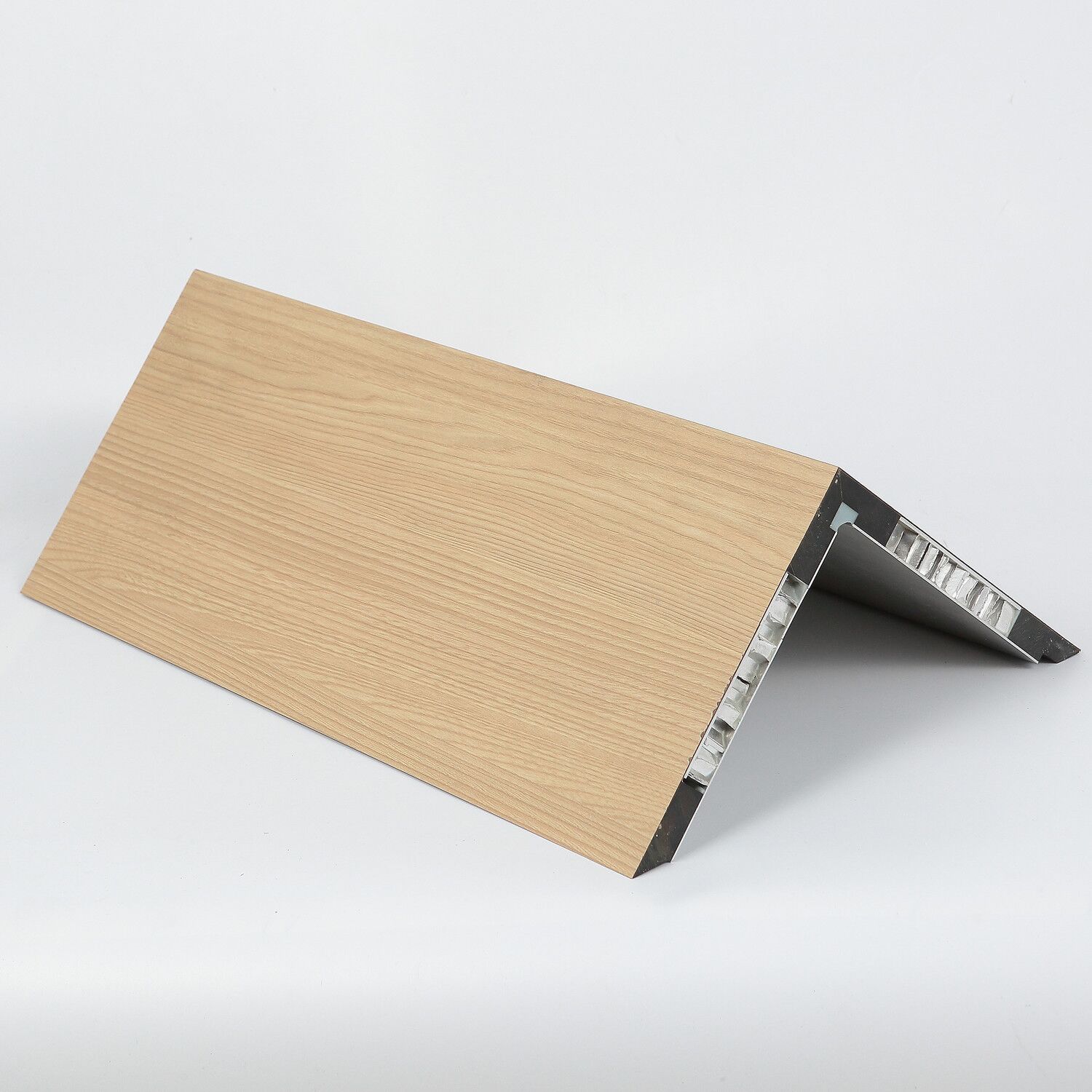

Wood Color Decorative 20mm Thickness HPL Honeycomb Panel For Vessel
Interior Decoration
1. Descriptions:
HPL honeycomb panel has good decorative properties, and is
especially suitable for marine applications, such as ship interior
decoration. Various panel thicknesses can be customized, and the
common thicknesses are 5mm, 10mm, 15mm, 20mm, 25mm and 30mm.
Standard honeycomb panel size is 4 feet × 8 feet, 1220 × 2440mm.
HPL honeycomb panel is a composite material made by laminating two
aluminum panels, with aluminum honeycomb core inside the aluminum
panel. The laminated aluminum honeycomb panel is specially designed
and manufactured for the decoration of ships, commercial ships,
yachts, etc. HPL aluminum honeycomb panel can be single-sided or
double-sided laminated. The most commonly used laminate is FORMICA
or WILSONART
2. Specifications:
| HPL honeycomb panel |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.5 mm to 4 mm |
| - Other thickness on request |
| - Color on request |
| ALU | 30303 Aluminum Honeycomb Core |
| Diameter (hexagonal cells): Ø 6, Ø 10, Ø 19 |
| Foil Thickness: from 40 to 80 microns |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.7 mm to 4 mm |
| - Other thickness on request |
| - Color on request |
| Total Panel thickness | Regular: 10mm, 15mm, 18mm, 20mm, 25mm |
| -Other thickness on request |
| Dimension | Regular: 1220*2440mm, 1500mm*3000mm |
| -Other dimension on request |
| Specification of honeycomb core |
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
Supply form | Unexpanded(block, strip) or expanded(slice); |
| Technical Data Sheet |
Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. HPL honeycomb panel has several advantages:
• Fireproof
• Resistant to strong acid, base and chemical corrosion, resistant
to water, moisture and mold
• Resistant to abrasion, scratches, and impact
• Easy to clean, anti-ultraviolet rays
• Resistant to fire, heat, and cigarette burns
• Environmentally friendly, no toxic, anti-static, no radiation
• Extremely durable and not easy to deform
• Various surface processing and colors
• BEECORE Honeycomb Composite Panel manufactured by Jiangsu Beecore
in Taizhou obtained certification to Bonding Standard DIN 6701 A2,
the accreditation for the use of adhesive bonding in the
manufacture of rail vehicles and parts of rail vehicles.
4. Applications:
• In the railway sector, BEECORE HPL Honeycomb Panels are used as
partitions, ceilings, floors, bulkheads, tables, etc.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for HPL honeycomb panel of
quality control of parts, processing, testing, packaging, etc.
6. HPL honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. Factory show
9. FAQ
Q1. What is HPL honeycomb panel usd for?
A: HPL honeycomb panel which has excellent rigidity and is one of
the best metal wall materials. It has been widely used in the
decoration of modern architecture, trains, automobiles,
shipbuilding, building materials industry, furniture industry and
so on.
Q2. What are the advantages of HPL honeycomb panel?
A: HPL honeycomb panel has the advantages of light weight-high
strength, high surface flatness, environmental protection and no
pollution.
Q3. What is the packaging method of HPL honeycomb panel?
A: HPL honeycomb panel of samples are packed in cardboard and bulk
orders are packed in plywood cases.
