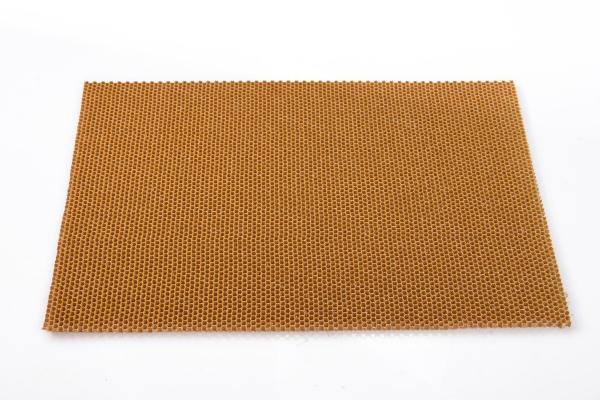

Sound Insulation Aramid Honeycomb Core 1200x1200mm For Railway
Transporation
1. Descriptions:
Aramid honeycomb core provides better heat-insulation and
sound-proofing compared to other metals and fiberglass, which saves
the fuel-consumption and offers comfortable traveling for
passenger. In addition to satisfying the strength and rigidity of
the interior design, it can also decrease the weight and energy
consumption.
By far, aramid honeycomb core has been utilized in the high-speed
train, double-deck train, subway, and other ground trasportation.
2. Specifications:
| Specifications | Cell size (mm/inch) | Density (kg/m³) | Compression strength (MPa) | L-Shear strength (MPa) | W-Shear strength (MPa) |
|
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products,
Automobile and so on
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for Aramid honeycomb core
of quality control of parts, processing, testing, packaging, etc.
6. Para Aramid honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. Factory show
9. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into
industrial use and aviation use. Aramid honeycomb core has been
widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile
and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue,
outstanding corrosion resistance and flame resistance, excellent
environment adaptability and electric insulating, good dielectric
properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard
and bulk orders are packed in plywood cases.
