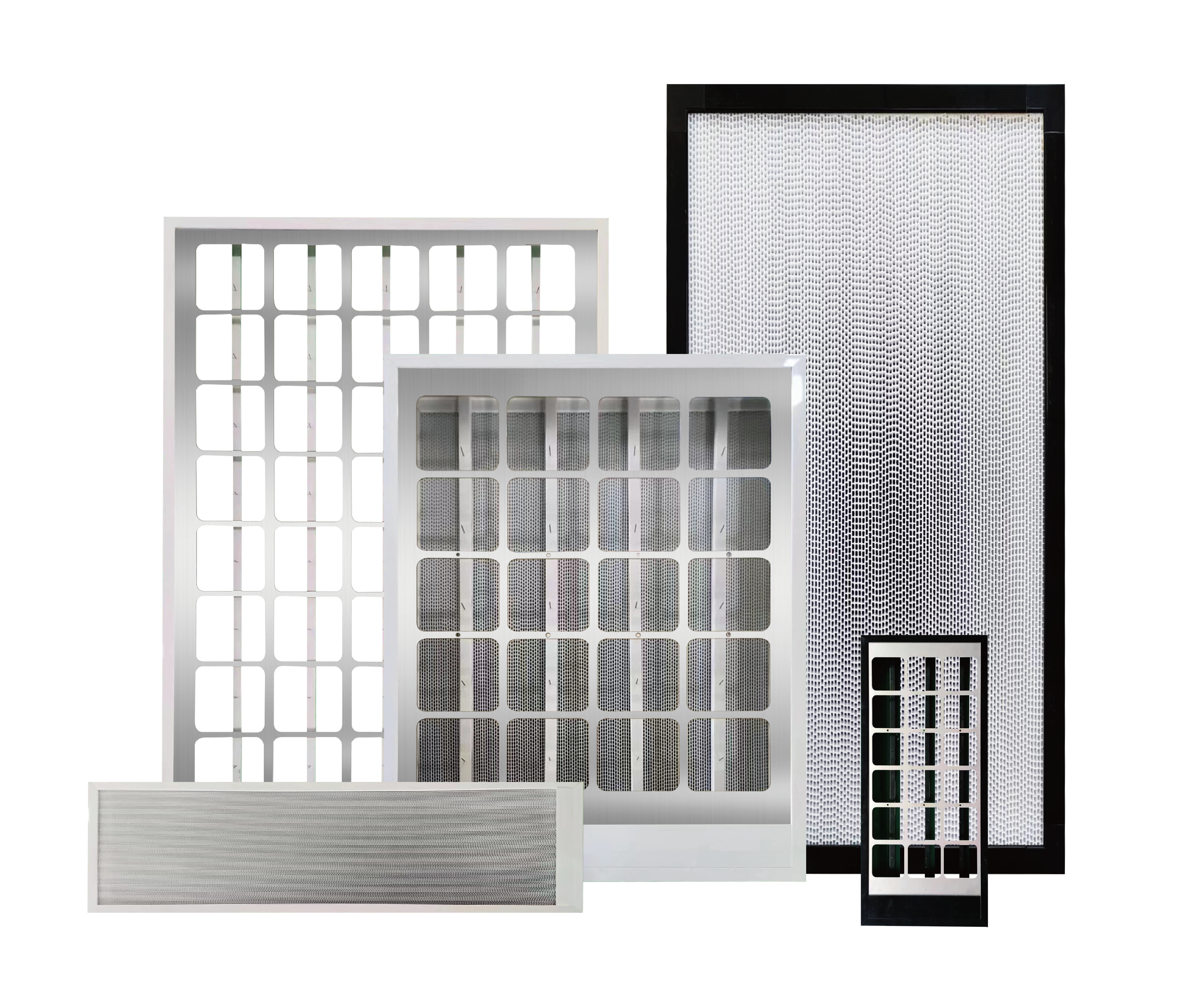

    Micro Electrostatic Filter Screens Customized Size For Various Ventilation Ducts

    Reusable Zero Consumable Micro Electrostatic Filter Screen Washable 980*254mm


    1. Micro Electrostatic Filter Screen of Descriptions:


    The micro electrostatic air filter mainly uses a charging electrode to ionize the air in the channel into ionized particles through glow discharge, charging the fine particles passing through.

    Secondly, the dust collection electrode plate uses a conductive non dielectric polymer new material electrode film as the carrier, and the electrode film is divided into high potential group and low potential group.

    Therefore, the filter adsorbs moving particles in the air through the strong electric field generated between the high potential and low potential group electrode films. Moreover, bacteria and other microorganisms attached to the particles are synchronously collected and killed in a strong electric field.


    2. Micro Electrostatic Filter Screen of Specifications:

    Micro Electrostatic Filter Screen
    Product nameMicro Electrostatic Filter Screen
    CarrierDielectric free polymer new material electrode film
    Size580*254mm ,780*254mm or Customizable
    Rated air volume680 m3/h
    Consumption5w
    Windage3-7-10Pa
    Thickness90mm
    Filtering efficiency

    3. ​Micro Electrostatic Filter Screen​ has several advantages:


    Efficient purification: Up to 99% one-time purification efficiency for PM2.5

    Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses

    Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity

    Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required


    4. Applications of Micro Electrostatic Filter Screen:


    Fresh air system, air purifier, air conditioner, Box type air conditioning, various pipelines



    5. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:

    6. Company profile

    Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.


    7. Factory show




    8. FAQ


    Q1. What is Micro Electrostatic Filter Screen usd for?

    A: The Micro electrostatic filter is suitable for various types of ventilation ducts.


    Q2. What are the advantages of Micro Electrostatic Filter Screen?

    A:

    1. Efficient purification: Up to 99% one-time purification efficiency for PM2.5.

    2. Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses.

    3. Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity.

    4. Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required.


    Q3. What is the packaging method of Micro Electrostatic Filter Screen?

    A: Micro electrostatic filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
