4x8' PE Coated Aluminum Honeycomb Panel Various Colors Light Weight For Ceiling
1. Descriptions:
PE coated sandwich aluminum honeycomb panels are mainly used
indoors, mainly for ceilings. Aluminum honeycomb panels can undergo
any surface treatment and any color. PE coated aluminum honeycomb
panels have rich surface colors, strong decorative properties, and
beautiful appearance.
Its structure consists of aluminum plate+aluminum honeycomb
core+aluminum plate, bonded with epoxy adhesive or polyester
adhesive.
PE coated aluminum honeycomb panels have excellent characteristics
such as light weight, good strength, super flatness, sound
insulation, and thermal insulation.
2. Specifications:
| PE aluminum honeycomb panel |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color | White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other
color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core |
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or
perforated; Slotted or unslotted |
| Technical Data Sheet |
Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. PE aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is
important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and
balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb
panel of quality control of parts, processing, testing, packaging,
etc.

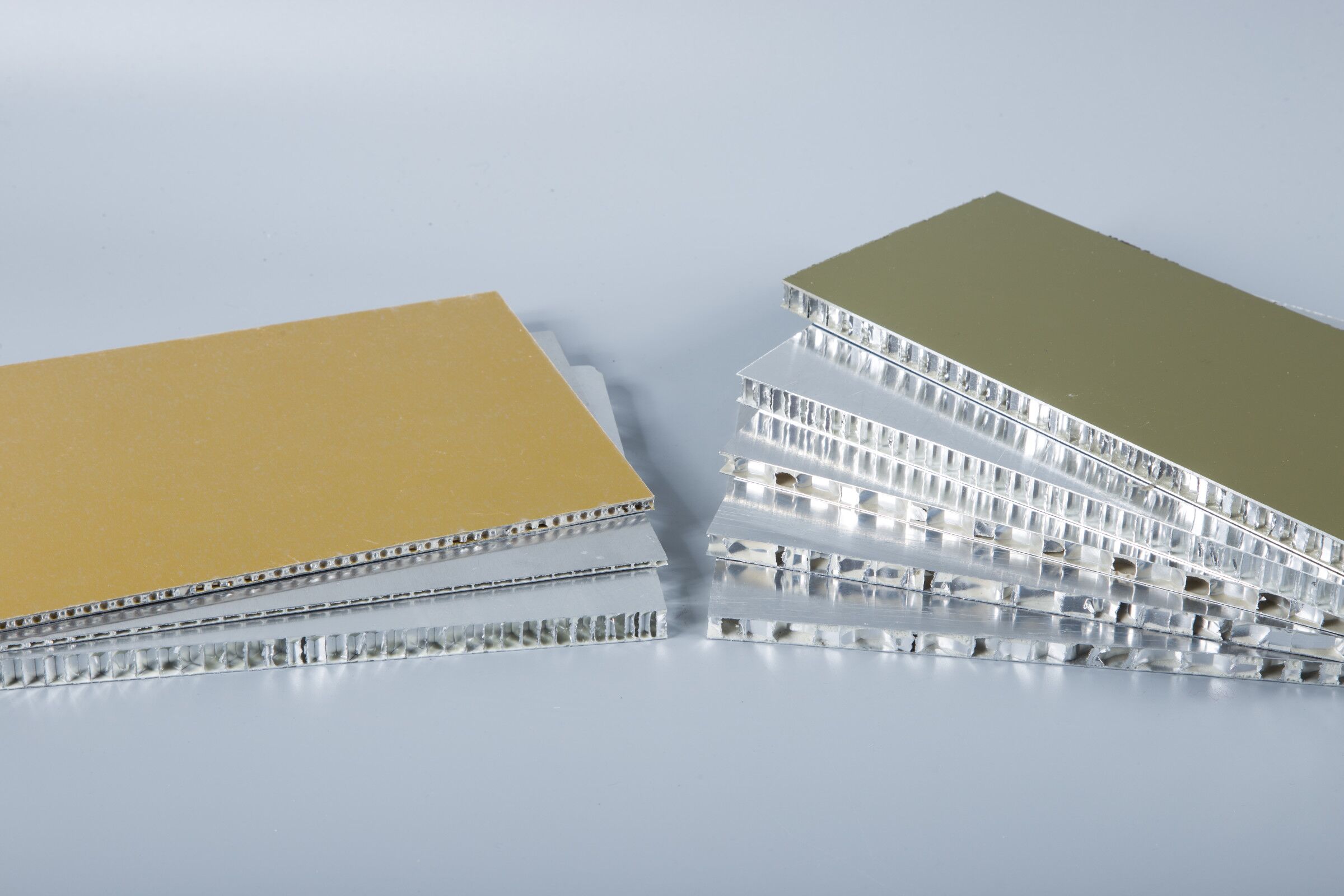

6. PE aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin
(Dutch) International Group which was founded in 1957. It is the
world's leading professional manufacturer of honeycomb materials.
Since it' s established, the company has been committed to the
research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.
8. Factory show
9. FAQ
Q1. What is PE aluminum honeycomb panel usd for?
A: PE aluminum honeycomb panel which has excellent rigidity and is
one of the best metal wall materials. It has been widely used in
the decoration of modern architecture, trains, automobiles,
shipbuilding, building materials industry, furniture industry and
so on.
Q2. What are the advantages of PE aluminum honeycomb panel?
A: PE aluminum honeycomb panel has the advantages of light
weight-high strength, environmental protection and no pollution,
excellent surface flatness and smoothness, superior weather,
corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of PE aluminum honeycomb panel?
A: PE aluminum honeycomb panel of samples are packed in cardboard
and bulk orders are packed in plywood cases.
